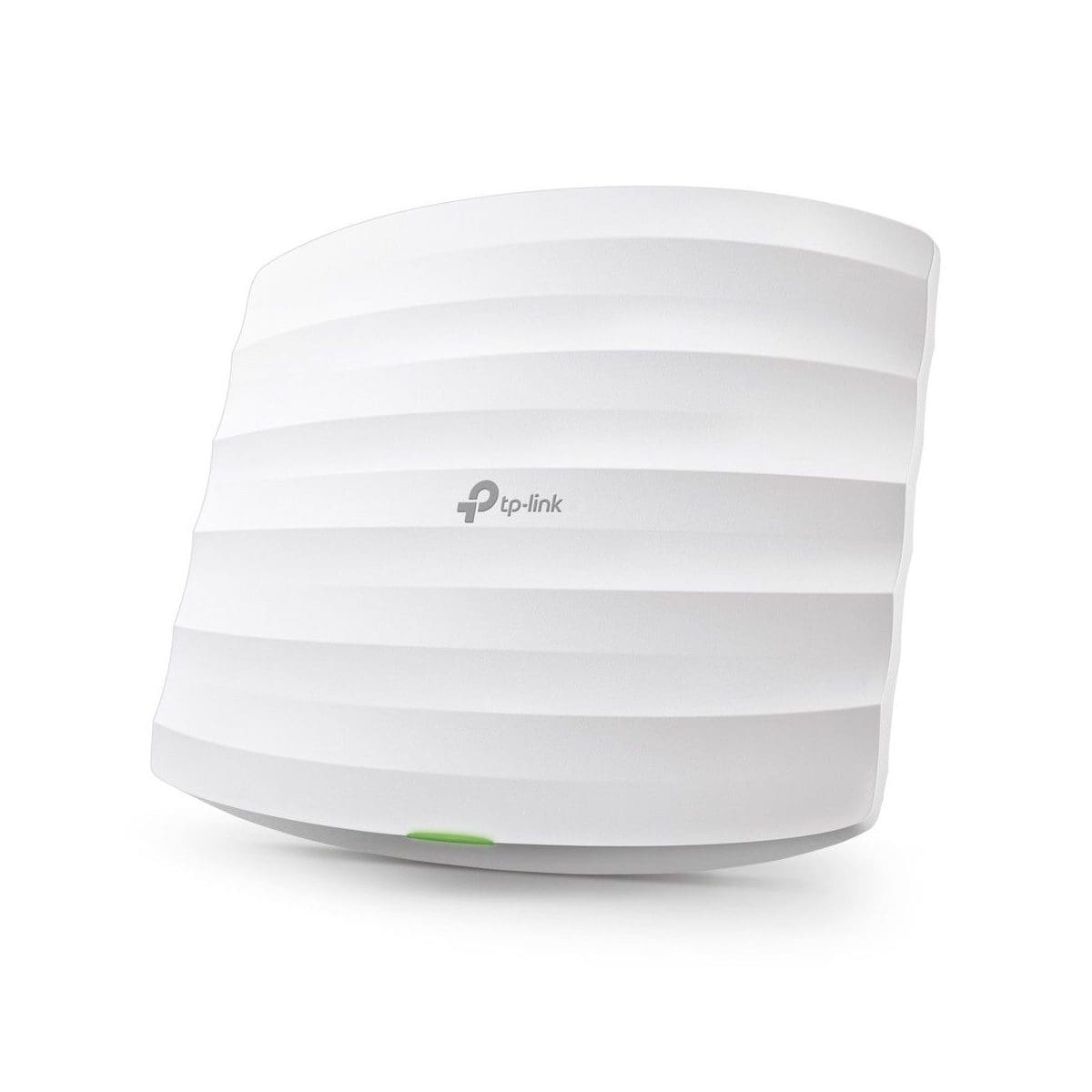

TP-LINK AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point
- Interface: 2 ? Gigabit Ethernet (RJ-45) Ports
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/at PoE or 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
- Power Consumption: 12.3 W
- Antenna Type: Internal Omni
a) 2.4GHz: 3 ? 4dBi
b) 5GHz: 3 ? 4dBi - Mounting: Ceiling or Wall Mount (Mounting kit included)
R1,887.00 incl vat
Sold Out
| HARDWARE FEATURES | |
|---|---|
| Interface | 2 ? Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/A PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 12.3 W |
| Dimensions ( W x D x H ) | 8.1 ? 7.1 ? 1.5 in. (205.5 ? 181.5 ? 37.1 mm) |
| Antenna Type | Internal Omni 2.4GHz: 3* 3.5dBi 5GHz: 3*4dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz:Up to 1300Mbps 2.4GHz:Up to 450Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | CE? ?20dBm(2.4GHz) ?23dBm(5GHz) FCC: ?24dBm(2.4GHz) ?24dBm(5GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Omada Software Controller OC200 |
| Cloud Access | Yes (Through Omada Software Controller or OC200) |
| EAP Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | Yes |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245 Gigabit Passive PoE Adapter Power Cord Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
