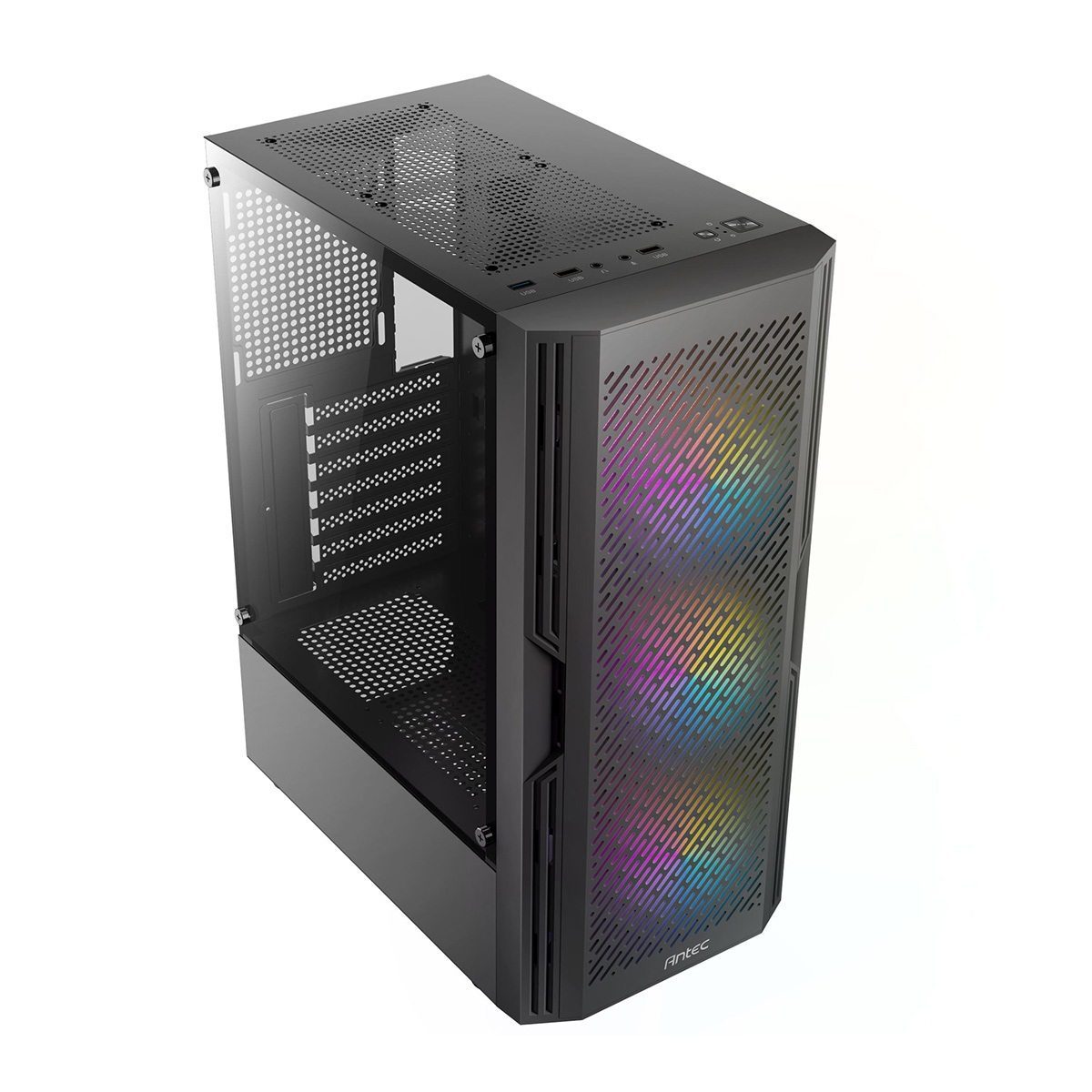

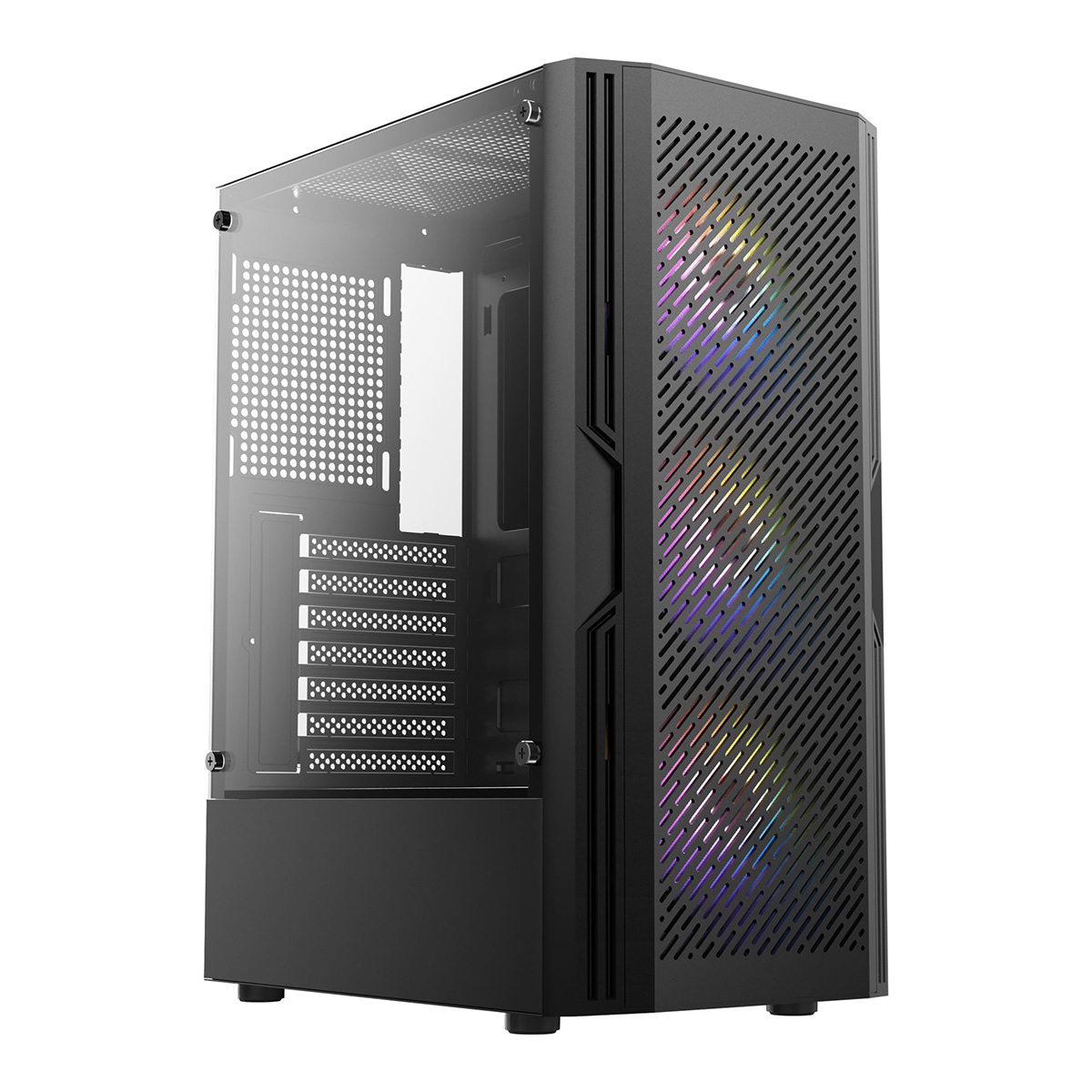

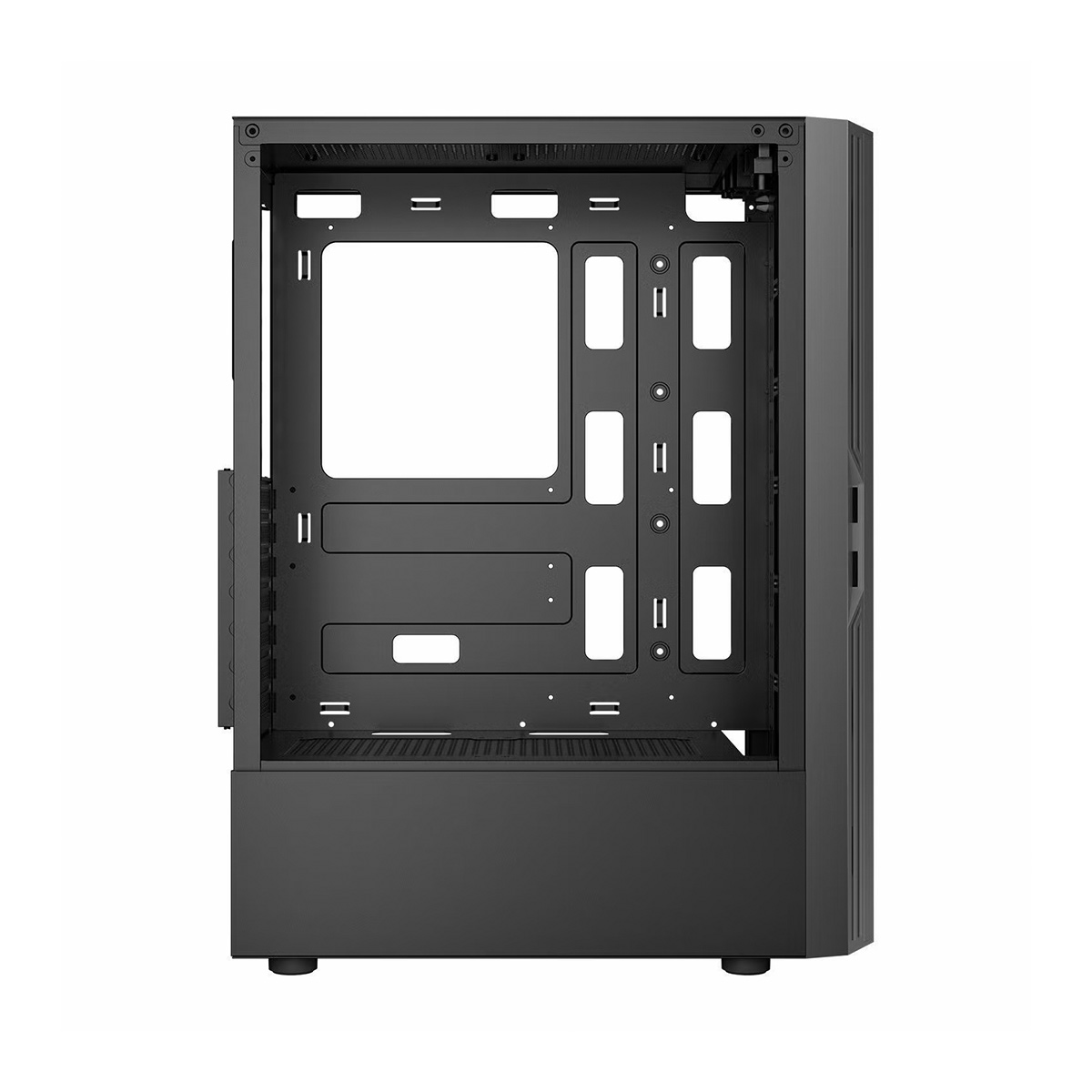

Antec AX20 RGB Windowed Black ATX Mid-Tower Desktop Chassis
- Vented Front-Panel Mid-Tower Chassis
- Antec Rainbow RGB Fixed-Mode Fans
- Clear Tempered Glass Side Panel Window
- Supports ATX, Micro-ATX, Mini-ITX Motherboards
- 1x Front-Panel USB 5Gb/s Type-A Port
- 2x Front-Panel USB 2.0 Type-A Ports
- 2x 3.5mm Audio Jacks (Headphone, MIcrophone)
- 2x 2.5″ HDD/SSD Drive Bays
- 1x 2.5/3.5″ Combo HDD Drive Bay
- 1x 3.5″ HDD Drive Bay
- 7x PCI Expansion Slots
- Removable 3.5″ Drive Bay
- Supports Up to 8x 120mm Chassis Fans
- 3x Pre-Installed Antec Rainbow RGB Fixed-Mode Molex 120mm Fans (Intake)
- Radiator Support Up to 280mm (Front)
- CPU Cooler Clearance: 155mm
- GPU Cooler Clearance: 270mm
- PSU Length Clearance: 170mm (With HDD Cage)
- Colour: Black
- 2 Year Warranty
R702.00 incl vat
Less than 6 items left!
| SPECIFICATIONS | |
| Brand | Antec |
| Series | AX Series |
| Model | AX20 Black (0-761345-10060-1) |
| Physical Details | |
| Colour | Black |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |
| Side Panel | Clear Tempered Glass Side Panel |
| Front I/O | 1x Front-Panel USB 5Gbps Type-A Port |
| 2x Front-Panel USB 2.0 Type-A Ports | |
| 2x 3.5mm Audio Jacks (Headphone, Microphone) | |
| Motherboard Support | Supports ATX, Micro-ATX, Mini-ITX Motherboards |
| Expansion Slots | 7x PCI Slots |
| Drive Bays | 2x 2.5″ HDD/SSD Drive Bay |
| 1x 2.5″/3.5″ Combo Drive Bay (Removable) | |
| 1x 3.5″ Drive Bay (Removable) | |
| PSU Support | ATX |
| Dimensions | 358 x 207 x 451mm (D x W x H) |
| Weight | 4.0kg |
| Pre-Installed Fans | |
| Front | 3x Antec 120mm RGB Fixed-Mode Fixed-Speed Molex Fans (Intake) |
| Top | N/A |
| Rear | N/A |
| Fan Support | |
| Front | 3x 120mm Fans or 2x 140mm Fans |
| Top | 2x 120mm Fans |
| Rear | 1x 120mm Fan |
| PSU Shroud | 2x 120mm Fans |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280mm Radiator |
| Top | N/A |
| Rear | N/A |
| Clearance | |
| CPU Cooler Height Limitation | 155mm |
| GPU Length Limitation | 270mm |
| Cable Management | Yes, 13mm cable management space |
| PSU Length Limit | Up to 170mm (with drive cage installed) |
| Up to 295mm (with drive cage removed) | |
| General | |
| Dust Filters | N/A |
| Chassis Lighting | Fixed-Mode RGB fans are not addressable and run at full speed via Molex connector |
| Warranty Information | |
| Warranty | 2 Year Warranty |
