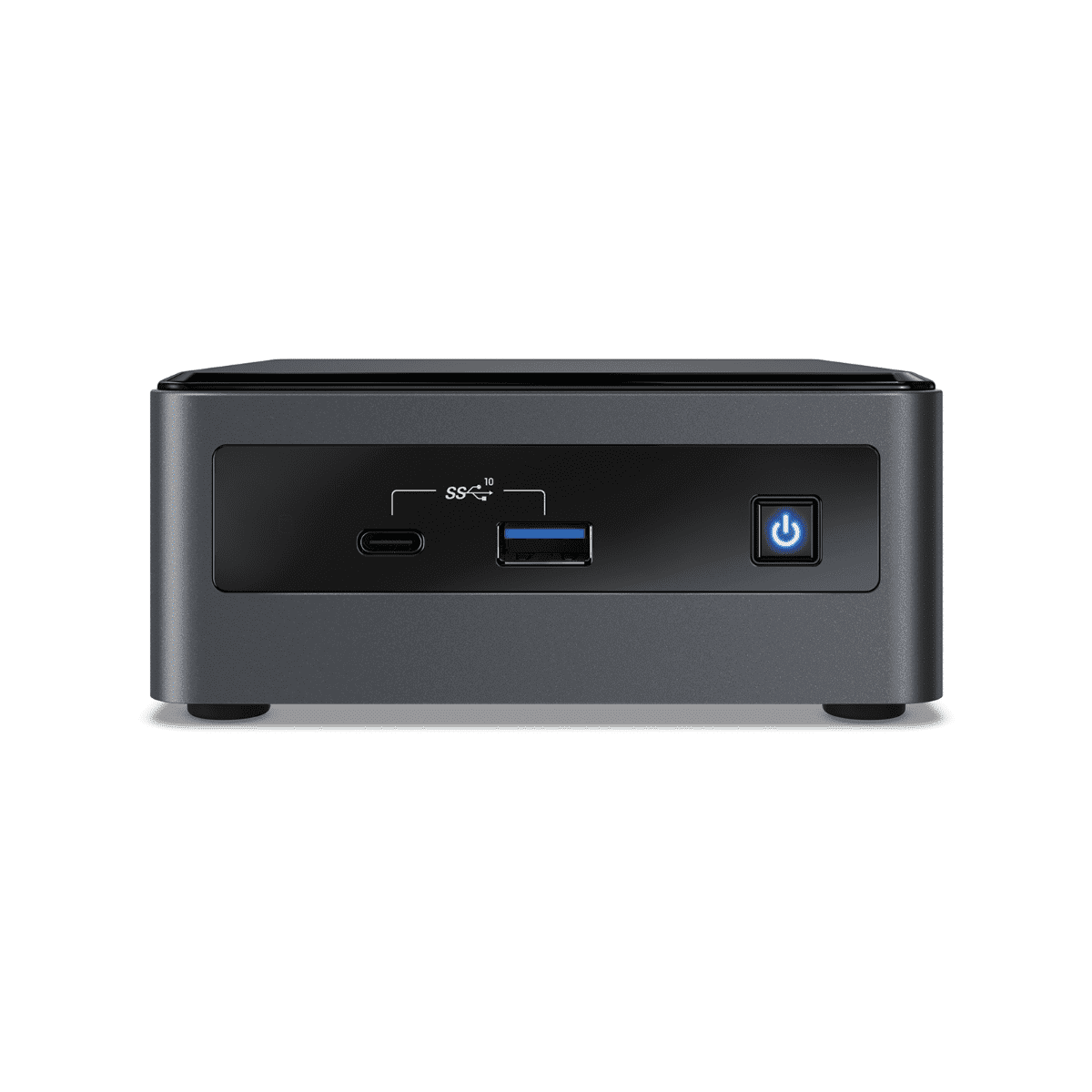

Intel NUC BXNUC10i5FNH Intel i5-10210U Processor 1.60GHz Quad Core Mini PC – RAM, HDD, OS Not Included
- Intel Core i5-10210U 1.60GHz Quad Core (Up to 4.20GHz Boost, 6MB SmartCache)
- 2x DDR4-2466 SODIMM Slots (Up to 64GB)
- 2x SATA 6.0 Gb/s Ports, 1x M.2 2280 Slot
- 1 x 2.5″ Drive Bay
- Intel UHD Graphics
- 3x USB Type-A, 2x USB Type-C, 1x HDMI 2.0a
- Intel Ethernet Connection I219-V, Intel Wireless-AX MAC
- Windows Compatible
- 3 Year Carry-In Warranty
R8,578.00 incl vat
Sold Out
Intel? NUC BAREBONES KIT I5-10210U, PLEASE ADD RAM STORAGE OS
| SPECIFICATIONS | |
| Brand | Intel |
| Series | NUC Kits |
| Model | BXNUC10i5FNH |
| Essential Specifications | |
| Board Form Factor | UCFF (4″ x 4″) |
| Socket | Soldered-Down BGA |
| Internal Drive Form Factor | M.2 and 2.5″ Drive |
| Number of Internal Drives Supported | 2 |
| Lithography | 14 nm |
| TDP | 25 W |
| DC Input Voltage Supported | 19 VDC |
| Processor Included | Intel Core i5-10210U Processor (6M Cache, Up to 4.10 GHz) |
| Memory Specifications | |
| Max Memory Size (Dependent on Memory Type) | 64 GB |
| Memory Types | DDR4-2666 1.2V SO-DIMM |
| Max Number of Memory Channels | 2 |
| Max Memory Bandwidth | 42.6 GB/s |
| Number of DIMMs | 2 |
| ECC Memory Supported | No |
| Graphics Specifications | |
| Integrated Processor Graphics | Intel UHD Graphics |
| Graphics Output | HDMI 2.0a; USB-C (DP1.2) |
| Number of Displays Supported | 3 |
| Expansion Options | |
| PCI Express Revision | Gen 3 |
| PCI Express Configurations | M.2 Slot with PCIe X4 Lanes |
| Removable Memory Card Slot | SDXC with UHS-II Support |
| M.2 Card Slot (Storage) | 22×42/80 |
| I/O Specifications | |
| Number of USB Ports | 7 |
| USB Configuration | 2x Front (Type-A, Type-C) and 3x Rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via Internal Headers |
| USB Revision | 2.0, 3.1 Gen 2 |
| USB 2.0 Configuration (External Internal) | 0 2 |
| USB 3.0 Configuration (External Internal) | 2B 2F 0 |
| Total/Max Number of SATA 6.0 Gb/s Ports | 2 |
| RAID Configuration | 2.5″ HDD/SSD M.2 SATA SSD (RAID-0 RAID-1) |
| Audio (Back Front Channels) | 7.1 Digital (HDMI mDP); L R mic (F) |
| Integrated LAN | Intel Ethernet Connection I219-V |
| Integrated Wireless | Intel Wireless-AX MAC |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| Additional Headers | CEC, 2x USB2.0, FRONT_PANEL |
| Number of Thunderbolt 3 Ports | 1 |
| Advanced Technologies | |
| Intel Optane Memory Supported | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| TPM | No |
| Intel HD Audio Technology | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Security & Reliability | |
| Intel AES New Instructions | Yes |
| Warranty Information | |
| Warranty | 3 Year Carry-In Warranty |
