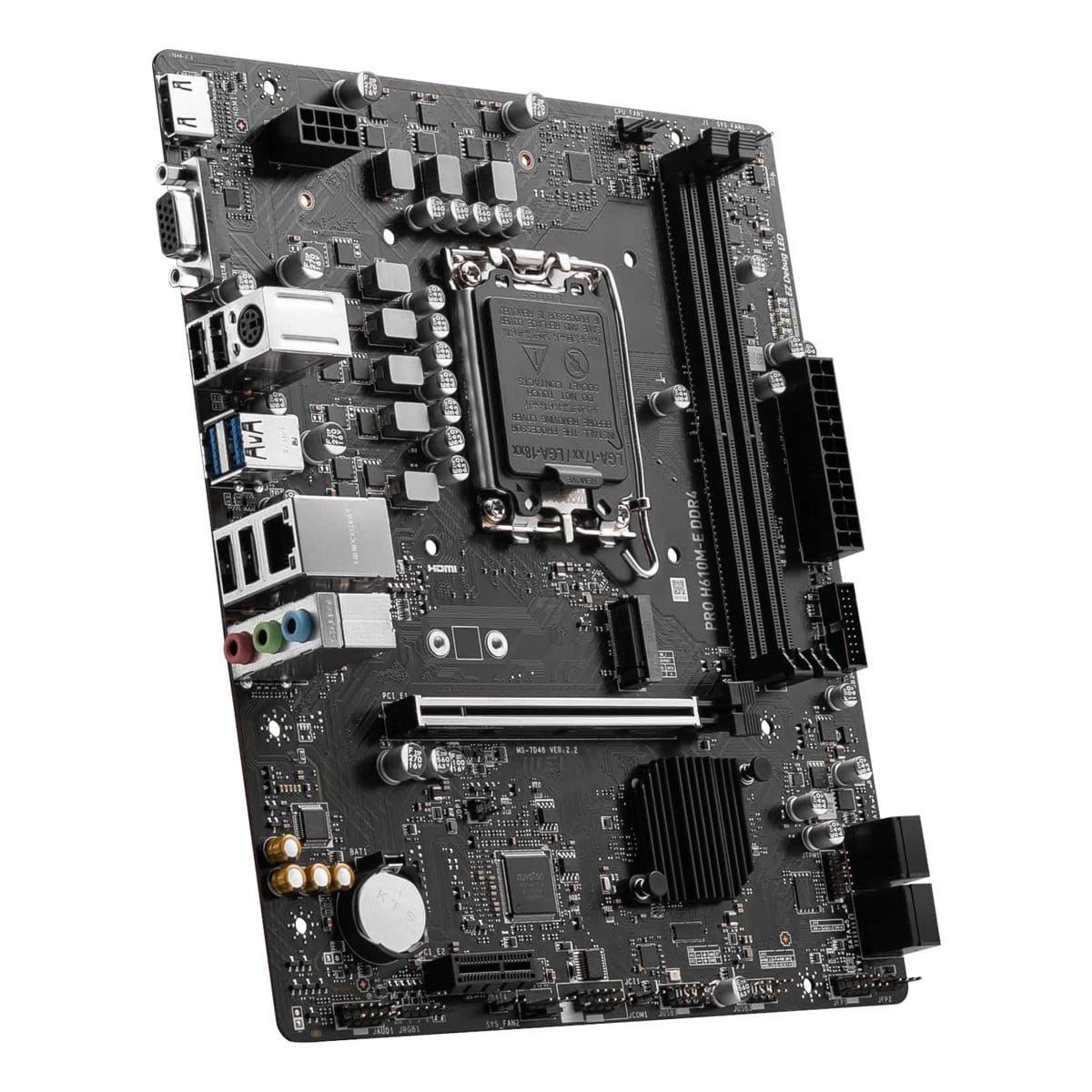

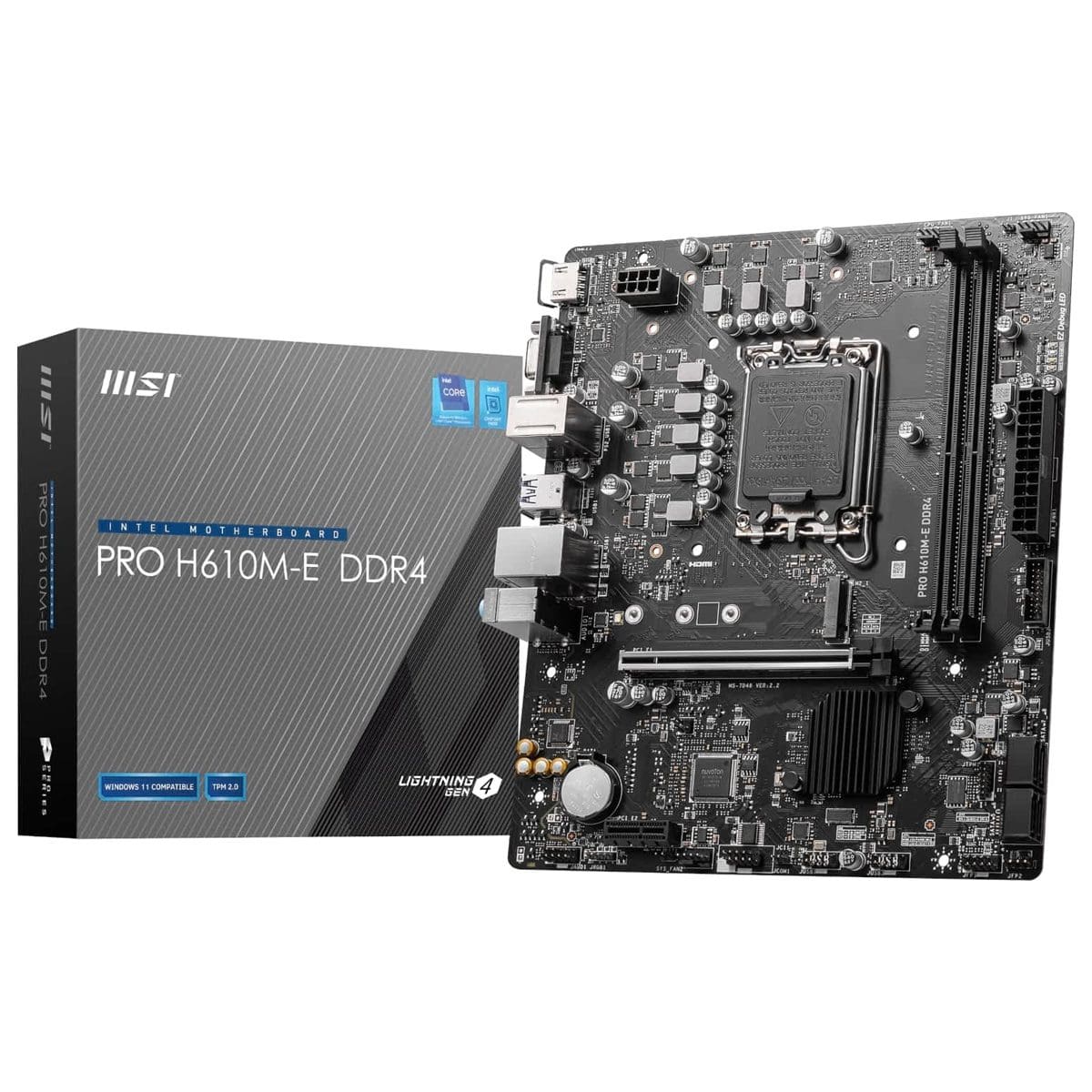

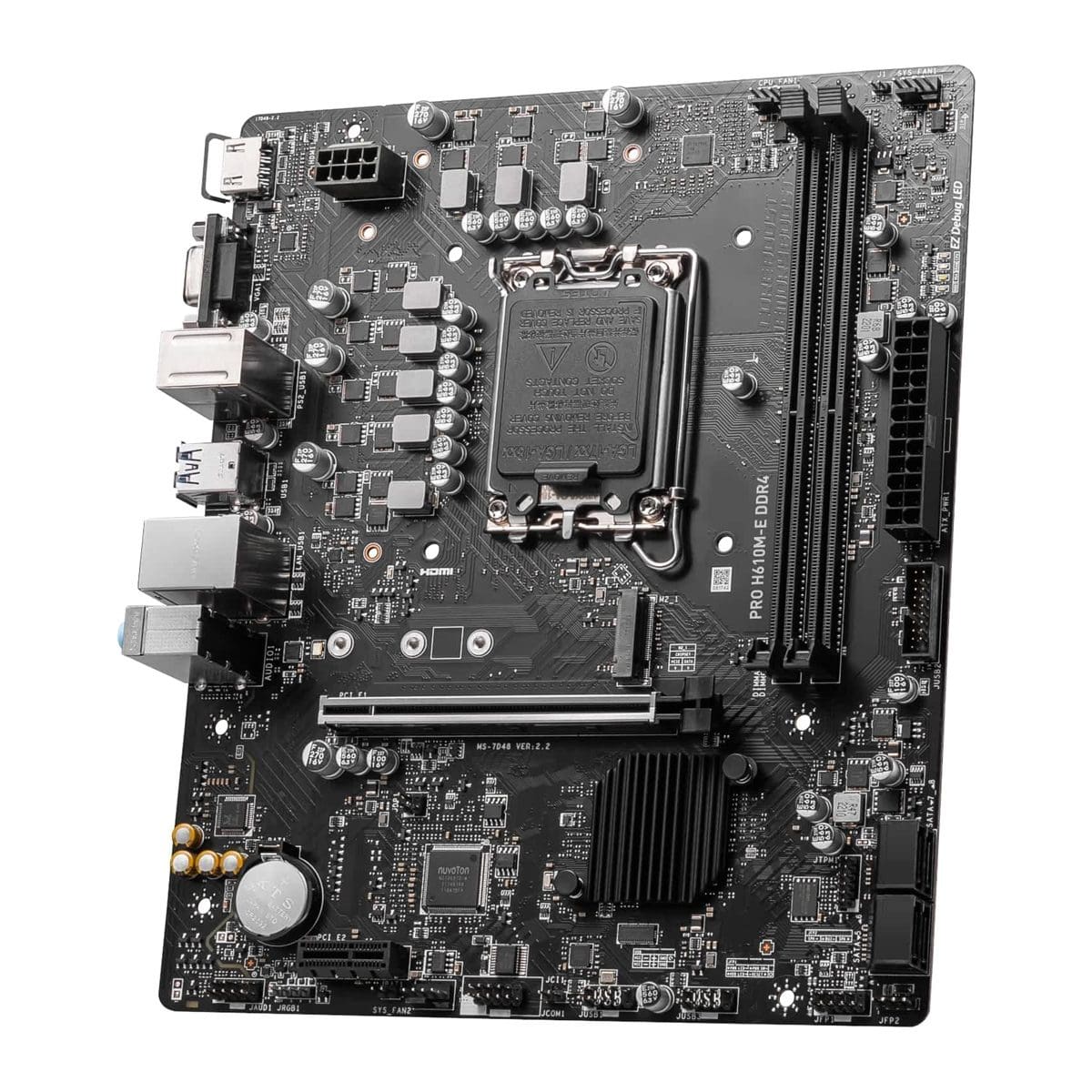

MSI PRO H610M-E DDR4 Intel H610 Alder Lake LGA 1700 Micro-ATX Desktop Motherboard
- Micro-ATX Form Factor Motherboard
- Intel H610 Chipset
- LGA 1700 Socket Supports 12th Gen Core Processors
- Intel 13th Gen Processors Supported
- 2x DDR4 DIMM Slots, Up to 64GB (2x32GB) Max Memory
- Supports Up to DDR4-3200MT/s (JEDEC)
- 1x PCIe 4.0 x16 Slot
- 1x PCIe 3.0 x1 Slot
- 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gb/s Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.0, 1x VGA D-Sub Port
- 3x 3.5mm Audio Jacks (Headphone, Line In, Microphone)
- Realtek RTL8111H Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High-Definition Audio Codec
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty
R1,981.00 incl vat
| SPECIFICATIONS | |
| Brand | MSI |
| Series | PRO Series |
| Model | PRO H610M-E DDR4 |
| CPU Support | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Intel 13th Gen Support requires BIOS update for compatibility. | |
| Chipset | Intel H160 Express |
| Memory Support | |
| Intel 12th & 13th Gen Series | 2x DDR4 memory slots, support up to 64GB |
| Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Video | |
| VGA D-Sub | 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz, Support for HDMI 2.1 TDMS and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel H610 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical Slot |
| Storage | |
| CPU Direct | 1x M.2 slot (Key M) supports up to PCIe 3.0 x4, Supports 2242/ 2260/ 2280 storage devices |
| Intel H610 Chipset | 4x SATA 6Gb/s connectors |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000 |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High-Definition Audio Codec |
| Supports 7.1-Channel High Definition Audio | |
| Connectivity | |
| Ports | 1x PS/2 Combo Port |
| 2x USB 3.2 Gen 1 ports | |
| 4x USB 2.0/1.1 ports | |
| 1x VGA D-Sub | |
| 1x HDMI 2.0 port | |
| 1x RJ-45 port | |
| 3x audio jacks | |
| General | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x TPM module connector | |
| 1x Serial port connector | |
| 1x 4-pin CPU fan connector | |
| 2x 4-pin system fan connectors | |
| 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset), Supports additional 2 USB 3.2 Gen 1 5Gbps ports | |
| 2x USB 2.0 Type-A connectors (From Hub-GL850G), Supports additional 4 USB 2.0 ports | |
| 1x 4-pin RGB LED connector | |
| 4x EZ Debug LED | |
| 1x Clear CMOS jumper | |
| I/O Controller | NUVOTON NCT6687-D Controller Chip |
| LED Displays | MSI EZ Debug LED Array |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| ACPI 6.4, SMBIOS 3.4 | |
| Form Factor | Micro-ATX Form Factor, 236 x 200 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | 1x M.2 Clip |
| 2x SATA 3.0 Cables | |
| 1x I/O Shield | |
| Quick Installation Guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
