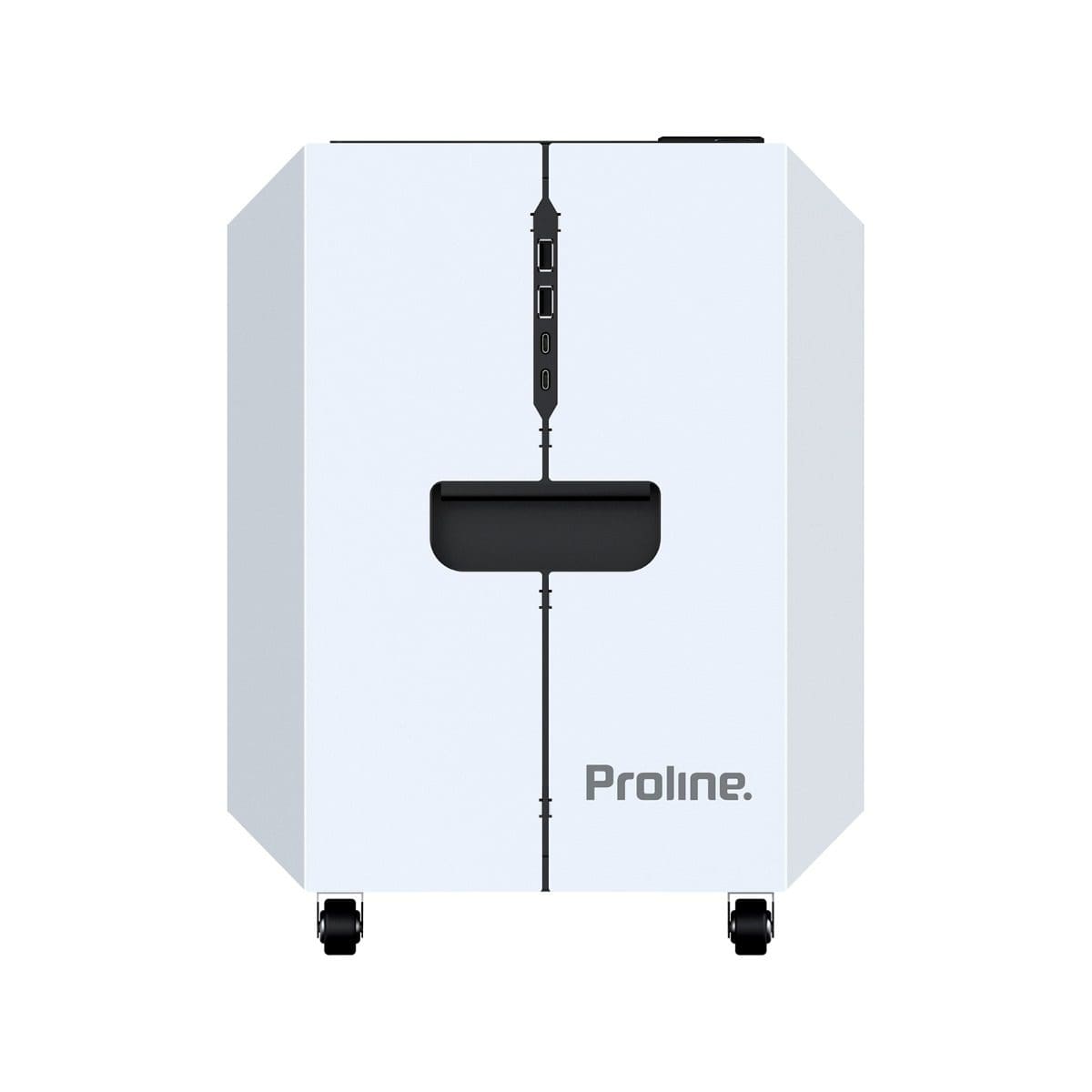

Proline 2.5KW PEB Portable Energy Bank
Proline Mobile Power Station 2.5kw
R15,929.00 incl vat
| Inverter Model: | PEB 2.5kw |
| Rated Inverter Power: | 2500VA/2500W |
| Input | |
| Voltage: | 230VAC |
| Selectable Voltage Range: | 170-280 VAC (for Computers); 90-280 VAC (for Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Output | |
| AC Voltage Regulation (Batt. Mode): | 230VAC ‡ 5% |
| Surge Power: | 5000VA |
| Efficiency (Peak): | 90% ~ 93% |
| Transfer Time: | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform: | Pure Sine Wave |
| Outlets: | UK x 4 or Schuko x 4 or Universal x 4 or South Africa x 4 or Brazil x 4 |
| Output Connectors:
USB Ports |
Type A x 2 (QC 3.0, 18W x 2) Type C x 2 (PD 3.0, 65W ×2) |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger type: | MPPT |
| Maximum PV Array Power: | 3000W |
| MPPT Range @ Operating Voltage: | 60-400 VDC |
| Maximum PV Array Open Circuit Voltage: | 450 VDC |
| Maxmum Solar Charge Current: | 30A |
| Maximum AC Charge Current: | 30A |
| Maximum Charge Current: | 30A |
| BATTERY | |
| Energy: | 1536Wh |
| Nominal Voltage: | 51.2 VDC |
| Full Charge Voltage (FC): | 58.4V |
| Full Discharge Voltage (FD): | 40V |
| Typical Capacity: | 30 Ah |
| Max Continuous Discharging Current: | 60A |
| Max Discharging Current: | 65A |
| Protection: | BMS |
| Maximum Charge Current: | 30A (1C) |
| Inner Resistance: | 0.6m ohm |
| Lifecycle: | 80% @EOL 100% DoD |
| PHYSICAL | |
| Dimension, D XWXH (mm): | 450×280 x 330 |
| Net Weight (kgs): | 25 |
| Compliance Safety: | IEC/EN 62109-11-2, EN 61000-6-4, EN 61000-6-2, IEC 62619, UKCA, UN38.3 |
