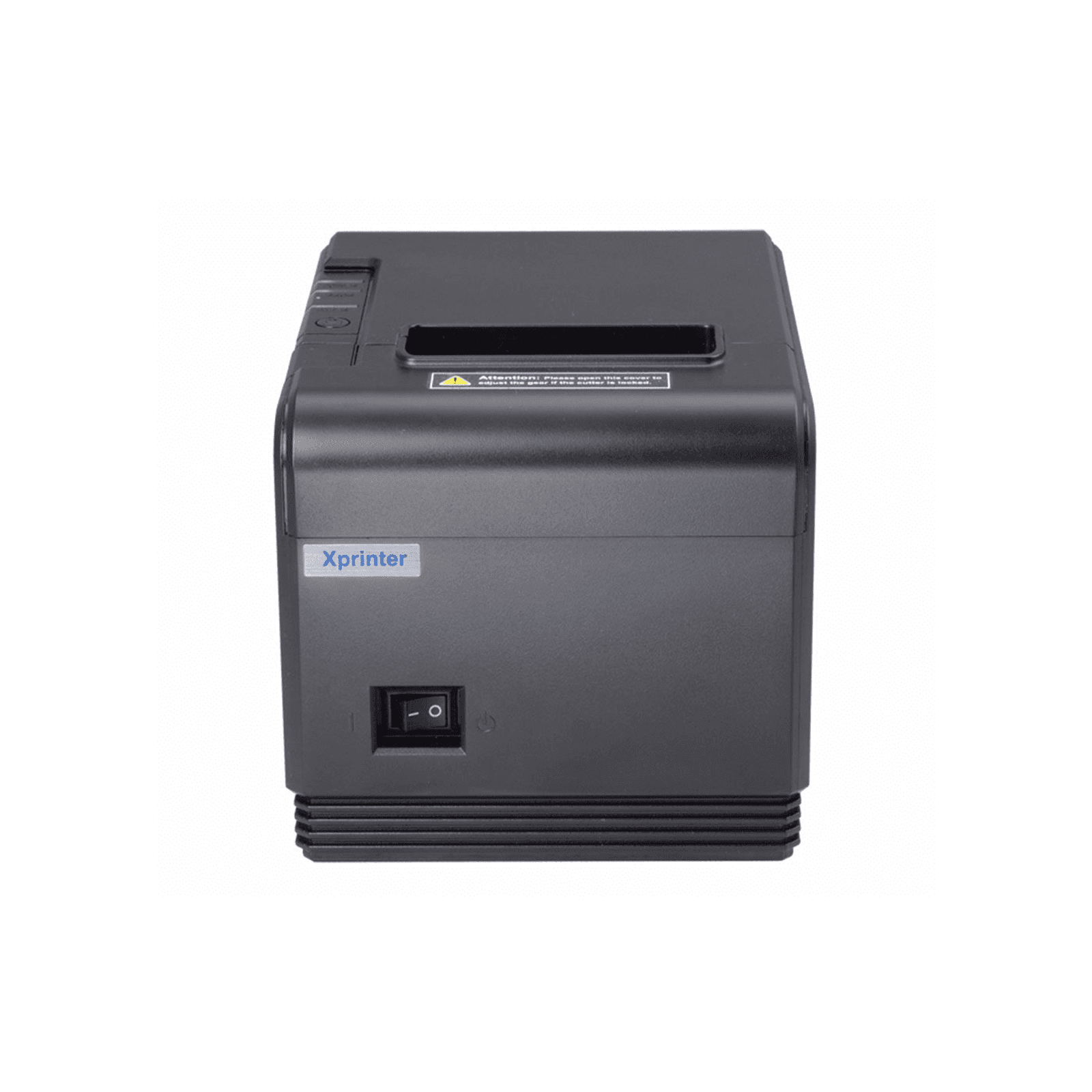

Proline Pinnpos FLY-Q801 Serial & USB Thermal Receipt Printer

The Proline Pinnpos FLY-Q801 Thermal Receipt Printer is a cost-effective barcode printer, equipped with an automatic cutter for semi-cutting. Comprehensive functional, whether it is supermarket or transportation or catering, can easily competent; Exquisite light black manufacturing process, smooth lines, the appearance of high-end atmosphere, compact size. Oil and water-resistant design, easy to handle in the kitchen or the front desk environment; Drive high-speed download printing mode, support Linux system driver. Network port to add no loss of single function, support network port, serial port monitoring function.

Specifications

Print:

• Model No.: FLY-Q801
• Printing method: Direct Thermal
• Printing speed: 260mm/sec
• Resolution: 576 dots/line or 512 dots/line
• Effective Printing Width: 72mm

Character:

• Character size: ANK, FontA: 12 x 24 dots / FontB: 9 x 17 dots / traditional: 24 x 24 dots

Paper Spec:

• Paper width: 79.5 +/- 0.5mm
• Thickness: 0.06 – 0.08mm
• Roll paper: 79.5 +/- 0.5mm x diameter 80mm

Buffer:

• Input buffer: 2048K bytes
• NV flash buffer: 256kbytes

Power supply:

• Cash drawer control: DC24V/1A
• Power supply: Input: AC110V/220V, 50 to 60Hz
• Power adapter: Output: DC24V/2.5A

Physical:

• Gross Weight: 1.3kg
• Dimension: 183 x 143.5 x 135mm
• Drivers: Win 9X / WinME / Win 2000 / Win2003 / WinNT / WinXP / Win Vista / Win 7 / Win 8 / Win 8.1 / OPOS / Linux
• Bar code: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 / QRCode
