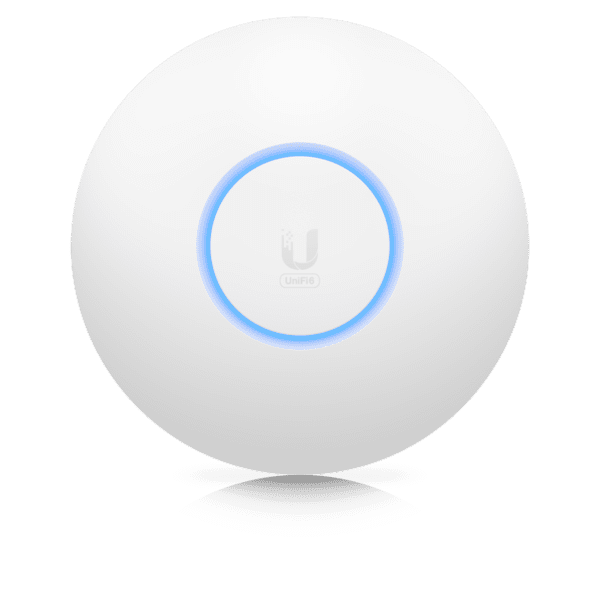

Ceiling-mounted WiFi 6 AP with 6 spatial streams designed for large offices.

WiFi 6

6 spatial streams

140 m² (1,500 ft²) coverage

350+ connected devices

Powered using PoE

GbE uplink

Mechanical
Dimensions	Ø197 x 35 mm (Ø7.8 x 1.4″)
Weight	Without mount: 580 g (1.3 lb) With mount: 720 g (1.6 lb)
Enclosure material	Polycarbonate
Mount material	Stainless steel (SUS304)
Weatherproofing	IP54
Hardware
Networking interface	(1) GbE RJ45 port
Management interface	Ethernet Bluetooth
Power method	PoE
Power supply	UniFi PoE switch PoE adapter (Not included)
Supported voltage range	44—57V DC
Max. power consumption	13W
Max. TX power 2.4 GHz 5 GHz 6 GHz	22 dBm 26 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) –
Throughput rate 2.4 GHz 5 GHz 6 GHz	573.5 Mbps (BW40) 4.8 Gbps (BW160) –
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 6 dBi –
LEDs	White/blue
Button	Factory reset
Mounting	Wall, ceiling (Included)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	350+
Zero wait DFS	Yes* *Supported with upcoming firmware versions
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac	6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network	Version 6.1.56 and later
