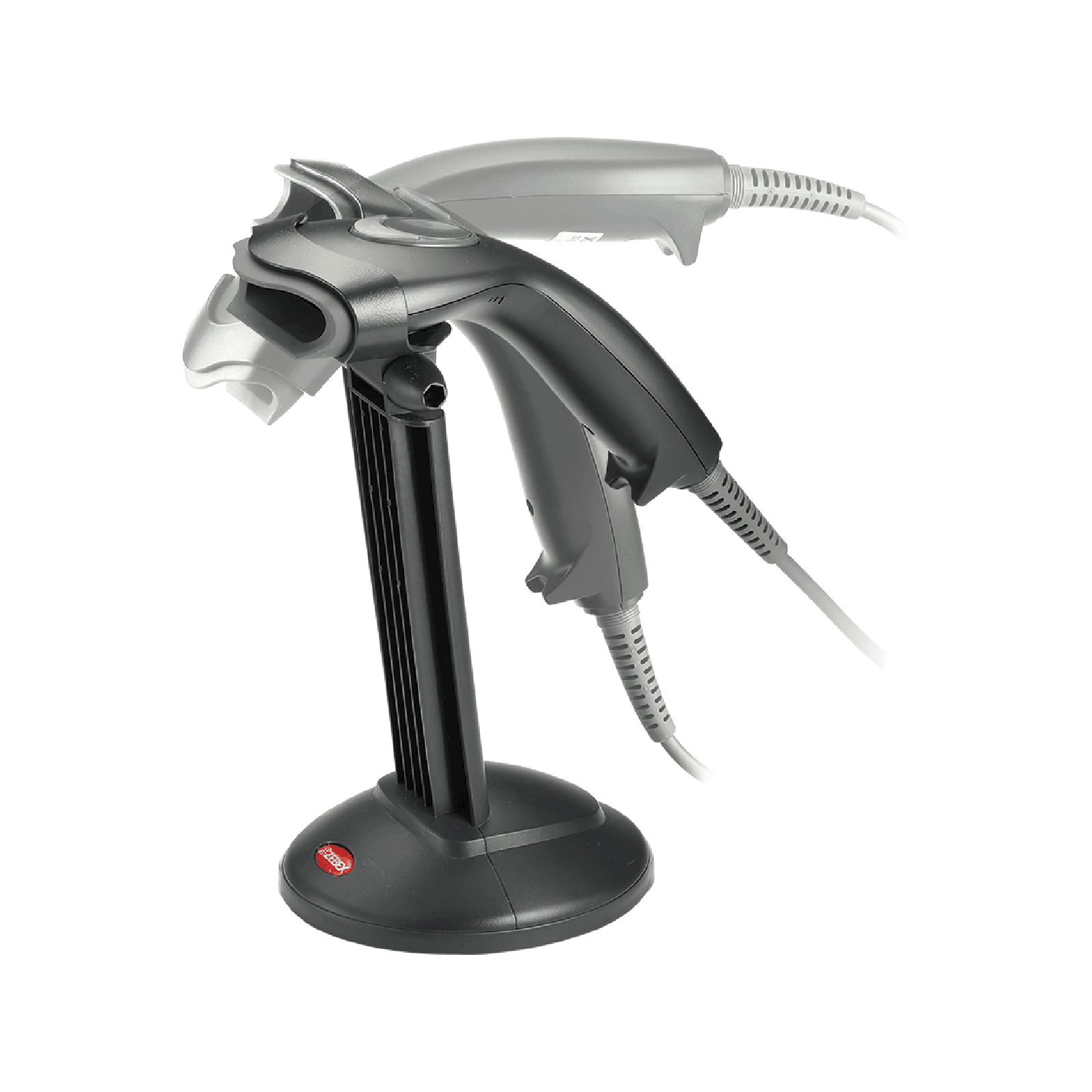

Zebex Z-3100 Linear Image Handheld Scanner
• Proprietary Ultrascan decoding technology
• Streamline design and Large trigger for effortless operation
• 32-bit micro processor unit
• Analog image capture technology
• Support presentation scan mode
• 0 – 100,000 Lux light immunity
• Captures barcodes on mobile phone, tablet, or computer screens
R790.00 incl vat
Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability.
At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.
It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.• Proprietary Ultrascan decoding technology
• Streamline design and Large trigger for effortless operation
• 32-bit micro processor unit
• Analog image capture technology
• Support presentation scan mode
• 0 – 100,000 Lux light immunity
• Captures barcodes on mobile phone, tablet, or computer screens
At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.
It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.• Proprietary Ultrascan decoding technology
• Streamline design and Large trigger for effortless operation
• 32-bit micro processor unit
• Analog image capture technology
• Support presentation scan mode
• 0 – 100,000 Lux light immunity
• Captures barcodes on mobile phone, tablet, or computer screens
Specifications
OPERATIONAL
Light Source
617 nm visible LED
Optical System
Linear CCD array
Microprocessor
32-bit
Depth of Field
4 mil: 0 – 60 mm
5 mil: 0 – 100 mm
7.5 mil: 0 – 180 mm
10 mil: 0 – 220 mm
13 mil: 0 – 285 mm
20 mil: 0 – 350 mm
Note: DOF may vary depending on environment condition and barcode quality.
5 mil: 0 – 100 mm
7.5 mil: 0 – 180 mm
10 mil: 0 – 220 mm
13 mil: 0 – 285 mm
20 mil: 0 – 350 mm
Note: DOF may vary depending on environment condition and barcode quality.
Scan Angle
42°
Scan Rate
330 scans per second
Print Contrast
30% @ UPC/EAN 100%
Indicator
Blue LED
Programmable Operation
Programmable tone & beep time
System Interface
Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
PHYSICAL CHARACTERISTICS
Dimensions H x W x L
152.3 × 64.4 × 104.9 mm (device only)
Weight (g)
84 g (device only)
Cable
Standard 2M straight
DECODING CAPABILITY
1D Barcode
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
