ATEN HDMI to VGA Adapter

Features
– Converts HDMI signals to VGA output
– Superior video quality ? up to 1920 x 1200, 1080p
– Supports wide screen formats
– Non-powered

Technical Specifications

Video Input
– Interfaces – 1 x HDMI Type A Male (Black)
– Impedance – 100 ?

Video Output
– Interfaces – 1 x HDB-15 Female (Black)
– Impedance – 75 ?

Video
– Max. Pixel Clock – 200 MHz
– Max. Resolution – Up to 1920 x 1200

Dimensions (L x W x H)
– 4.55 x 2.30 x 1.48 cm
– (1.79 x 0.91 x 0.58 in.)

Weight
– 0.01 kg ( 0.02 lb )

Package Contents

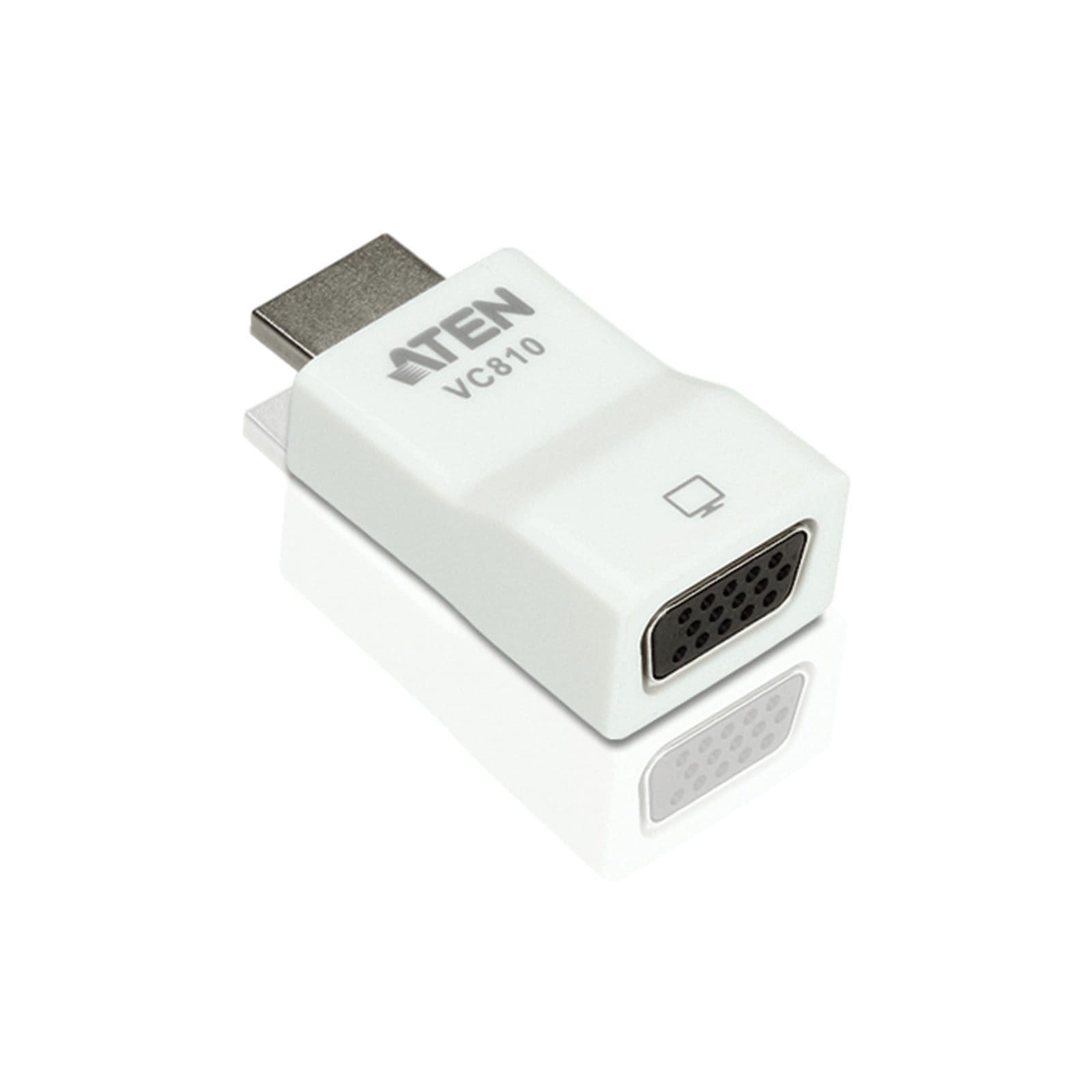

– 1x VC810 HDMI-to-VGA converter

• The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g. projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at extra cost.
• It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed ? simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
