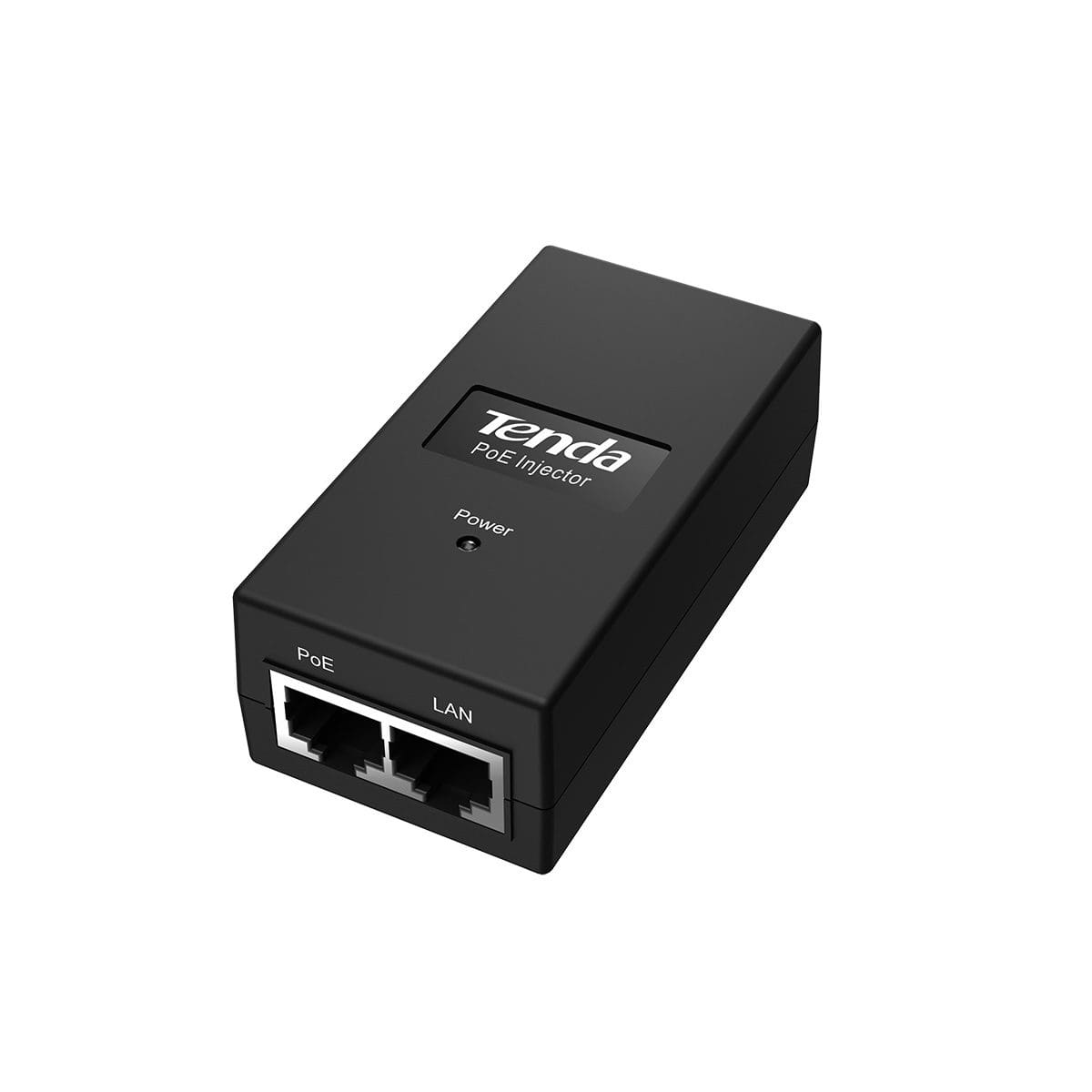

Tenda PoE Adapter PoE15F-48V-I Passive PoE Injector 100m Adapter
- Delivers power and data through one Ethernet cable for easy network extension
- Compatible with IEEE 802.3af compliant powered devices
- PoE Port Delivers power up to 100 meters
- Plug and Play, no configuration required
R215.00 incl vat
PoE injector PoE15F can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af’s PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.
Specification
Network standards
IEEE802.3、IEEE802.3u
LED Indicator
Link/Act , PoE Status
Interfaces
1*10/100 Base-TX Ethernet ports(Data/PoE)
1*10/100 Base-TX Ethernet ports(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
84.5mm*44mm*29.8 mm
Level of protection
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Transmission Rate
100Mbps
PoE budget
Single port: AF: 15.4W
Whole device: 15W
Power consumption
15W
Input voltage
100－240V AC 50/60Hz
48V/0.3A DC（Power Adapter Output）
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、RoHS
