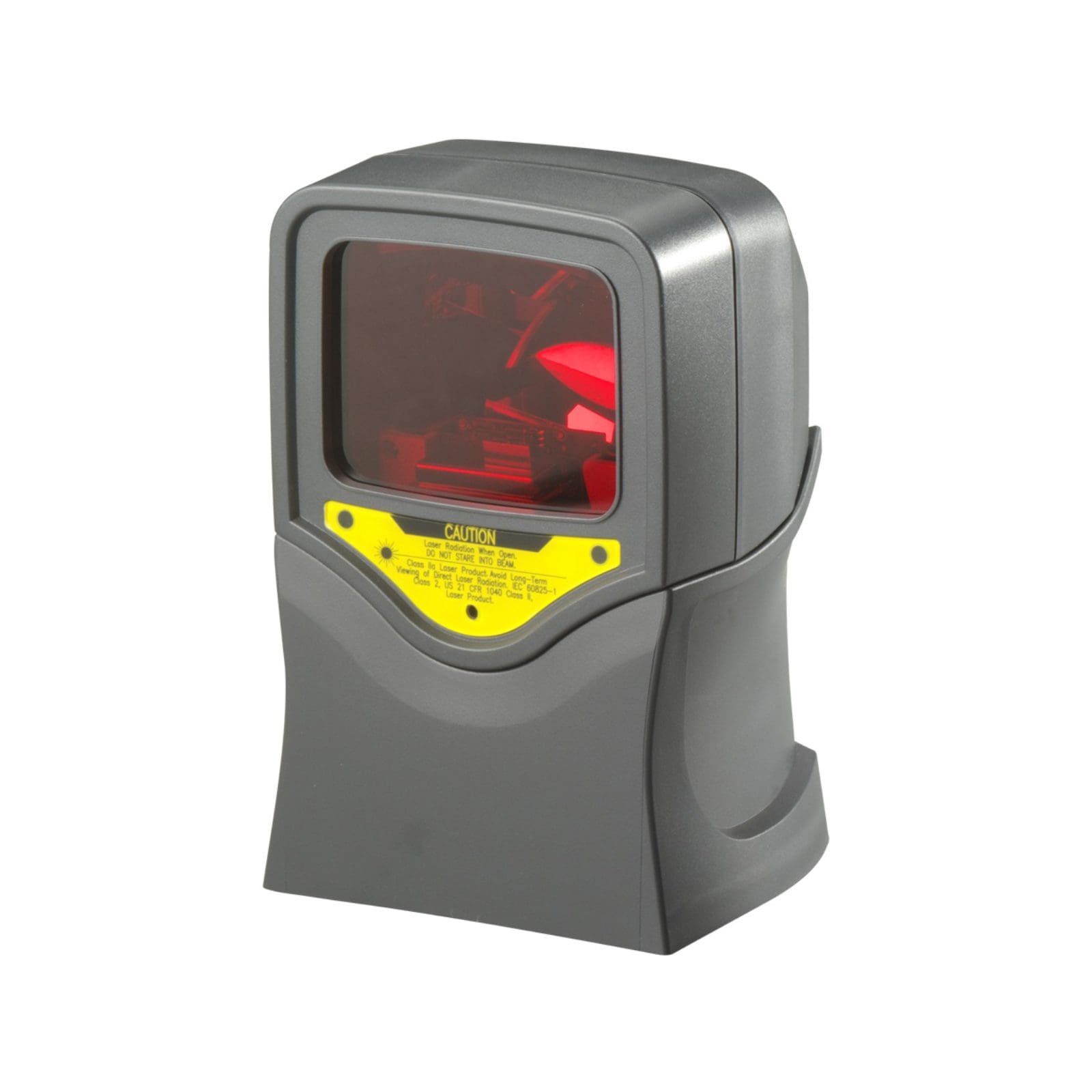

Zebex Z- 6010 Compact Omnidirectional Hands-Free USB Laser Barcode Scanner – Z-6010USB

– The Z-6010 is a compact hands-free omnidirectional laser scanner, and becomes a single-line laser scanner by pressing down a button.
– It is designed to suit both requirements for omnidirectional and single-line scanning.
– With the reserved mounting holes at the back of the scanner body, the Z-6010 transforms to a scanning module to allow integration into your desirable hardware application.
– Support both omnidirectional and single-line scanning
– Aggressive scanning performance
– Proprietary Z-SCAN+ technology
– Flexible communications

Technical Specifications
Light Source
– 650 nm visible laser diode (VLD)
Depth of Field
– 5 mil: 40 – 90 mm
– 7.5 mil: 0 – 150 mm
– 10 mil: 0 – 180 mm
– 13 mil: 0 – 200 mm
– 20 mil: 0 – 280 mm
Note:
– DOF may vary depending on environment condition and barcode quality.
Scan Pattern
– 5 directions of scan field
Scan Rate
– 1, 400 scans per second (omnidirectional); 70 scans per second (single-line)
Scan Line
– 20
Print Contrast
– 30% at UPC/EAN 100%
Indicator
– Two-color LED (blue & red)
Programmable Operation
– Beeper tone & volume
System Interface
– Keyboard, RS-232, HID USB, USB Virtual COM, wand
