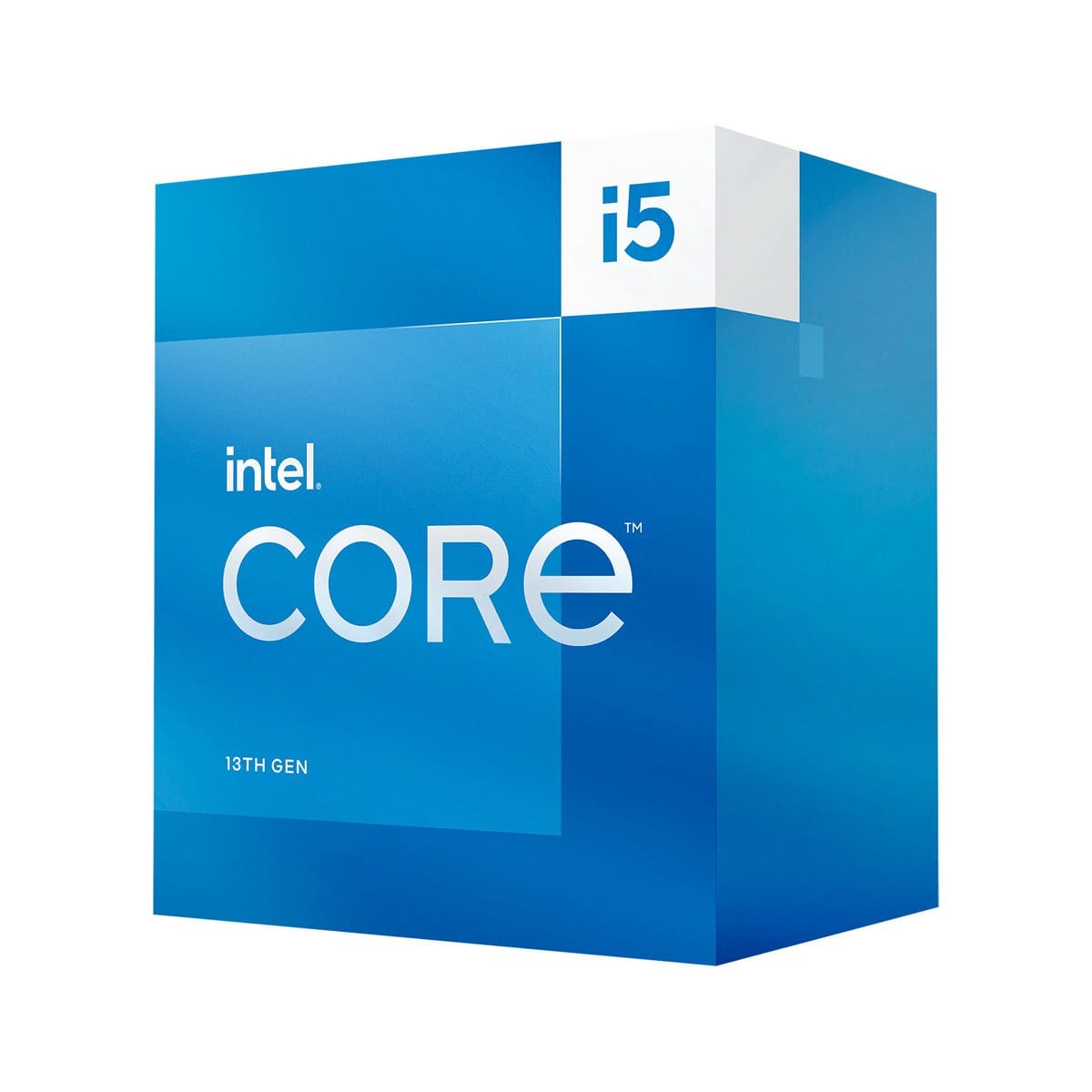

Intel Core i5-13400 10-Core 4.60GHz Raptor Lake Socket LGA1700 Desktop CPU
- Intel’s Latest Hybrid Architecture on Intel 7 Process
- 6 P-Cores, 4 E-Cores
- 10 Cores, 16 Threads
- 20MB Smart Cache
- Intel UHD Graphics 730
- P-Core Max Turbo Clock: Up to 4.60GHz
- E-Core Max Turbo Clock: Up to 3.30GHz
- P-Core Base Clock: 2.50GHz
- E-Core Base Clock: 1.80GHz
- Socket LGA 1700 Compatible
- Includes Intel RM1 Stock Cooler
- Base Power: 65W
- Turbo Power: Up to 154W
- 3 Year Warranty
R5,951.00 incl vat
Intel Core i5-13400 CPU – 13th Gen 4.60 GHz 20 MB Processor BX8071513400
Features
Intel?Gaussian & Neural Accelerator
Intel?Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel?GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.
Intel?Deep Learning Boost (Intel?DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.
Intel?Speed Shift Technology
Intel?Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
Intel?Turbo Boost Technology
Intel?Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don?t.
Intel?64
Intel?64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core’s temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits.
Intel?Volume Management Device (VMD)
Intel?Volume Management Device (VMD) provides a common, robust method of hot plug and LED management for NVMe-based solid state drives.
| SPECIFICATIONS | |
| Brand | Intel |
| Series | 13th Gen Raptor Lake |
| Model | Core i5-13400 (BX8071513400) |
| Essentials | |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Core Arrangement | 6 Performance Cores, 8 Efficiency Cores |
| Cores | 14 |
| Threads | 20 |
| Performance-core Max Turbo Frequency | 4.60GHz |
| Efficient-core Max Turbo Frequency | 3.30GHz |
| Performance-core Base Frequency | 2.50GHz |
| Efficient-core Base Frequency | 1.80GHz |
| Cache | 24 MB Intel Smart Cache |
| Total L2 Cache | 20MB |
| Processor Base Power | 65W |
| Maximum Turbo Power | 154W |
| TJUNCTION | 100?C |
| Memory | |
| Max Memory Supported | 128 GB |
| Memory Types | Up to DDR5 5600MT/s |
| Up to DDR4 3200MT/s | |
| Max Number of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6GB/s |
| Graphics | |
| Processor Graphics | Intel UHD Graphics 730 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55GHz |
| Graphics Output | DisplayPort 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz |
| API Support | DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan |
| Multi-Format Codec Engines | 1 |
| Intel Quick Sync Video Support | Yes |
| Intel Clear Video HD Technology Support | Yes |
| Number of Displays Supported | 4 |
| Expansion | |
| Direct Media Interface (DMI) Revision | 4 |
| Max Number of DMI Lanes | 8 |
| Scalability | Single socket |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16 plus 4 lanes OR 2×8 plus 4 lanes |
| Max Number of PCI Express Lanes | 20 |
| General | |
| Advanced Features | Intel Gaussian & Neural Accelerator 3.0 |
| Intel Thread Director | |
| Intel Deep Learning Boost (Intel DL Boost) | |
| Intel Speed Shift Technology | |
| Intel Turbo Boost Technology 2.0 | |
| Intel Hyper-Threading Technology | |
| Intel 64 | |
| 64-bit Instruction Set | |
| Intel SSE4.1, Intel SSE4.2, Intel AVX2 Instruction Set Extensions | |
| Idle States | |
| Enhanced Intel SpeedStep Technology | |
| Thermal Monitoring Technologies | |
| Intel Volume Management Device (VMD) | |
| Security & Reliability Features | Intel Standard Manageability (ISM) |
| Intel Control-Flow Enforcement Technology | |
| Intel AES New Instructions | |
| Secure Key | |
| Intel OS Guard | |
| Intel Trusted Execution Technology | |
| Execute Disable Bit | |
| Intel Boot Guard | |
| Mode-based Execute Control (MBEC) | |
| Intel Stable IT Platform Program (SIPP) | |
| Intel Virtualization Technology with Redirect Protection (VT-rp) | |
| Intel Virtualization Technology (VT-x) | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Linux x86-64 | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
